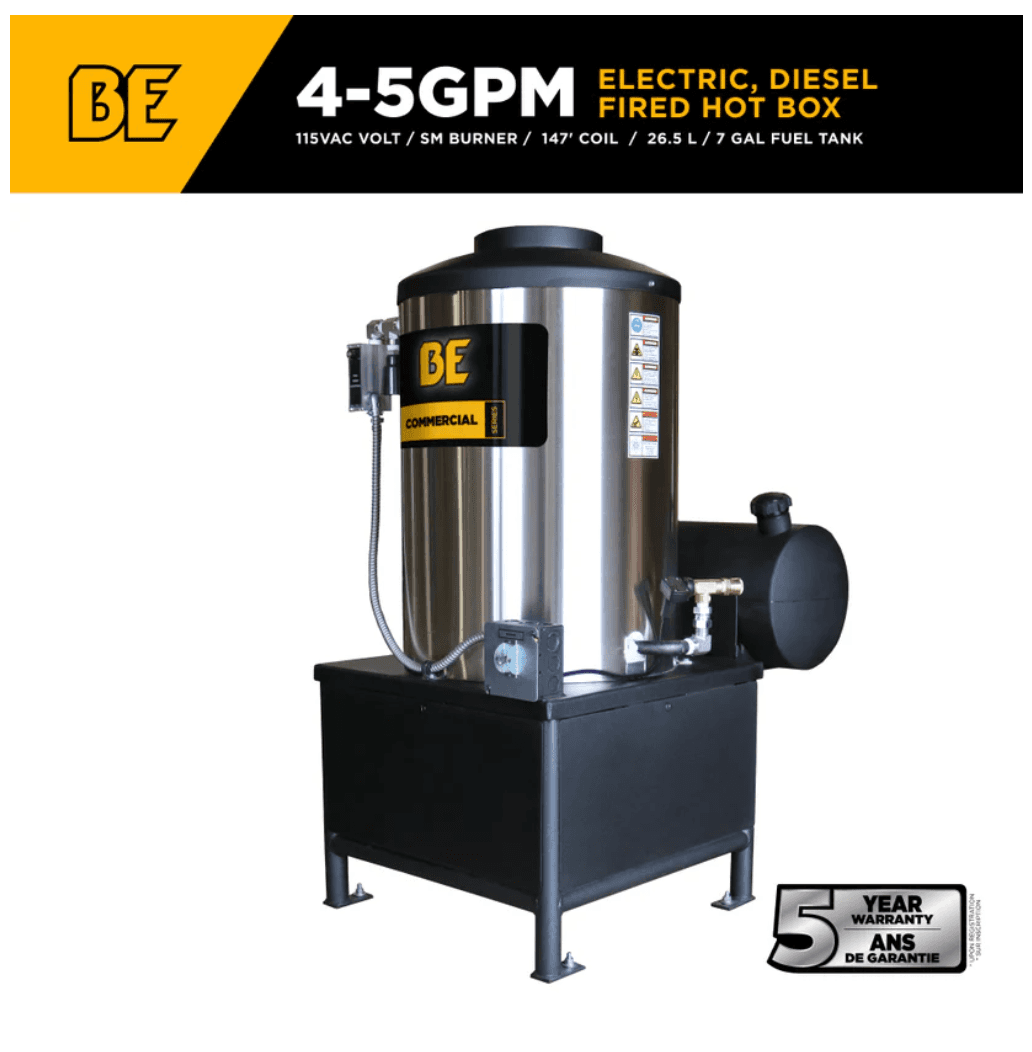

BE 115V (4-5gpm) Diesel Vertical Burner

PRODUCT DESCRIPTION

EVOLVE YOUR COLD WATER CLEANING WITH INDUSTRIAL HEAT

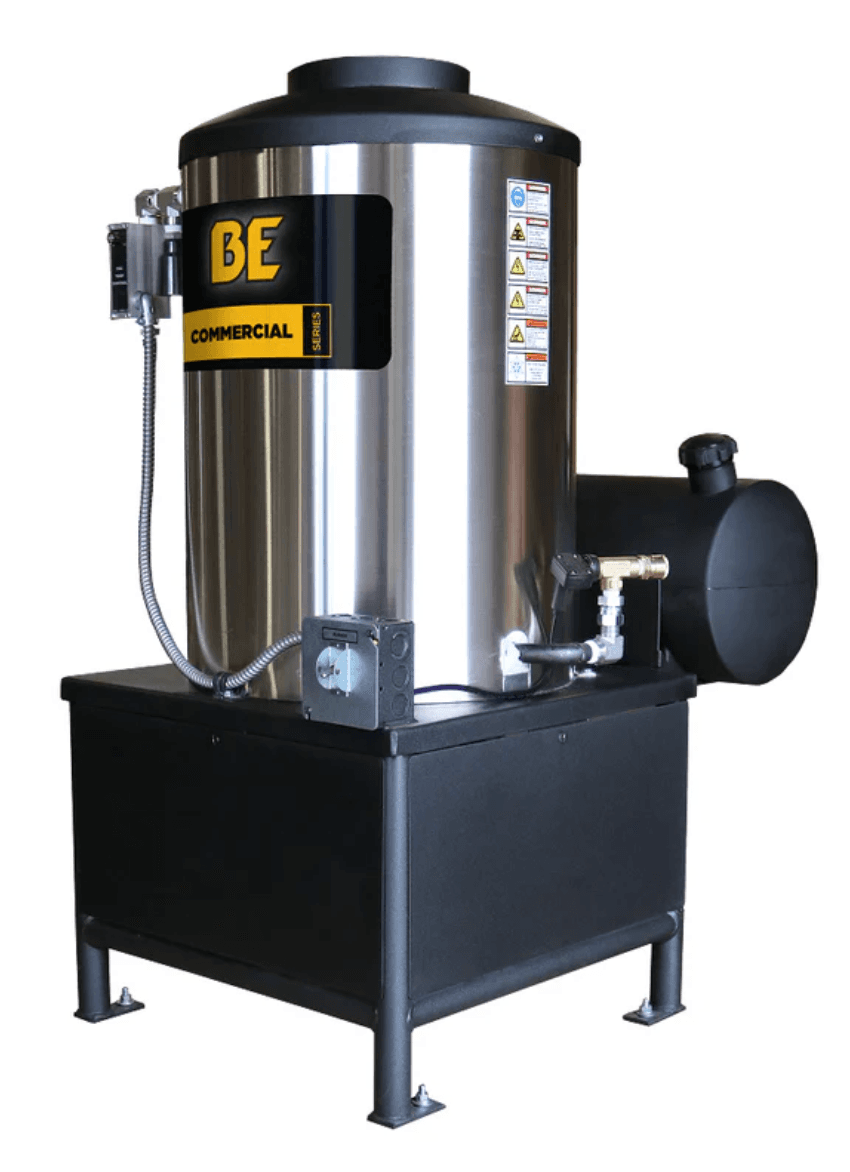

The BE Power Equipment 96115V Vertical Electric-Ignition Diesel-Fired Hot Box is the ideal solution for professionals who need hot water performance without upgrading to a full hot water pressure washer. Designed to connect directly to a cold water pressure washer, this hot box instantly transforms your setup into a powerful hot water cleaning system capable of cutting through grease, oil, and stubborn grime with ease.

Powered by 115VAC, the 96115V is perfectly suited for shop environments, wash bays, and stationary installations where standard electrical power is available. With an impressive 550,000 BTU diesel-fired burner, this unit heats water up to 93°C / 200°F, dramatically improving cleaning speed and efficiency while reducing chemical use.

Housed in a rugged powder-coated steel frame, the 96115V is built to withstand demanding work environments while delivering reliable, on-demand hot water whenever the job requires it.

TURN ANY COLD WATER PRESSURE WASHER INTO A HOT WATER SYSTEM

The 96115V hot box is engineered to integrate seamlessly with existing pressure washers and is ideal for applications such as:

• Automotive and fleet washing
• Equipment and machinery degreasing
• Industrial maintenance and wash bays
• Agricultural and farm equipment cleaning
• Property maintenance and sanitation

Hot water breaks down oil and grease faster than cold water alone, allowing operators to clean more effectively with less effort.

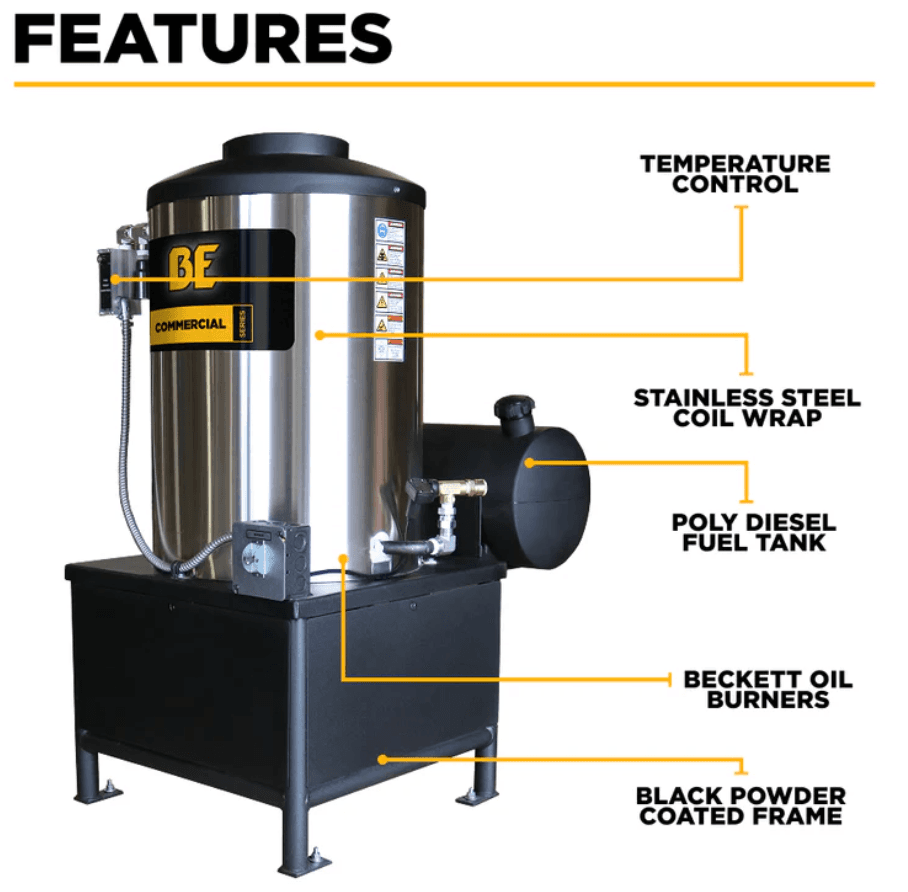

FEATURES

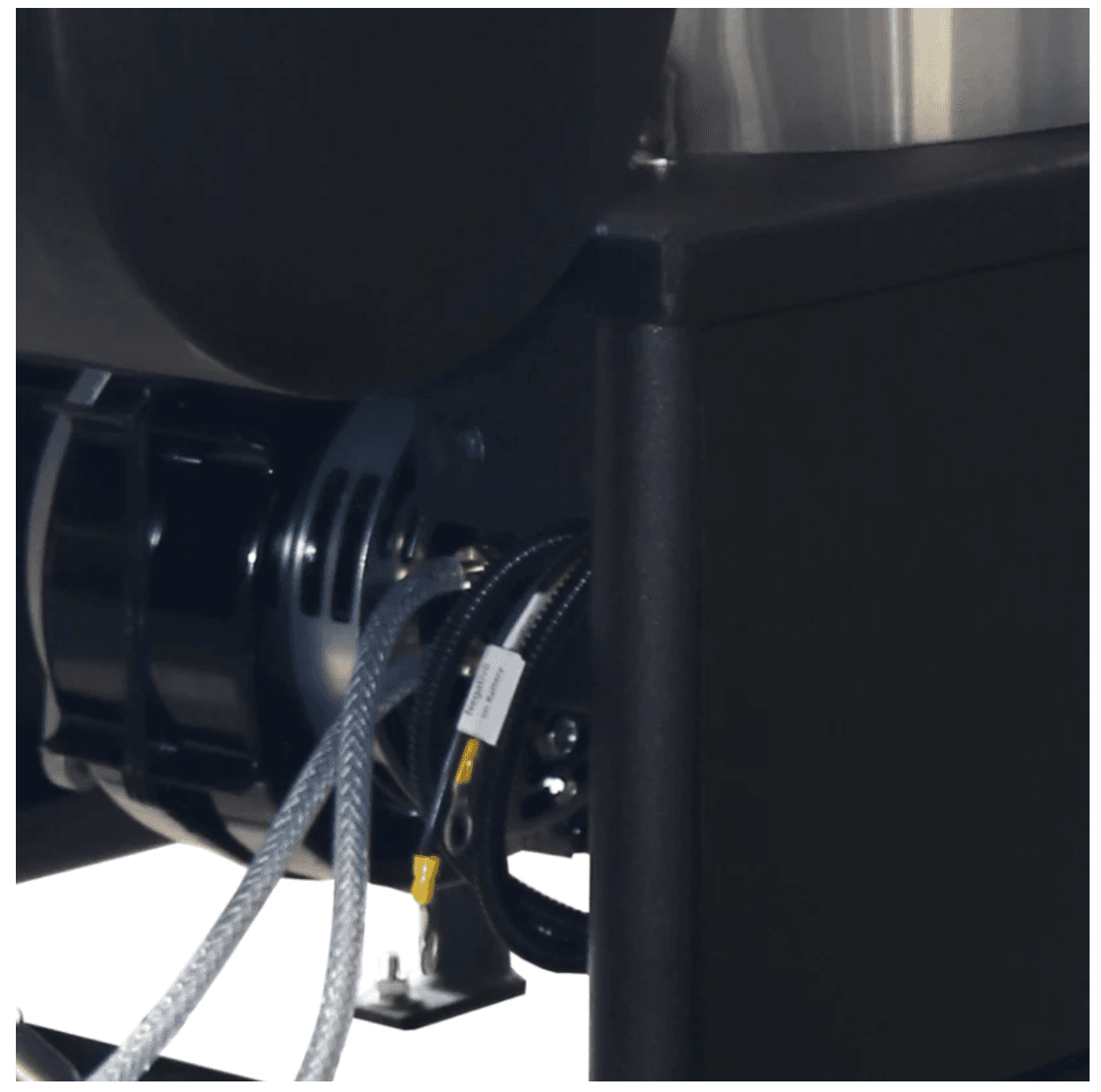

High-Output Diesel-Fired Heating System at the heart of the 96115V is a diesel-fired SM burner with electronic ignition, delivering powerful and consistent heating performance.

Heating system highlights include:
• 550,000 BTU output
• Maximum water temperature of 93°C / 200°F
• 115VAC operation
• Toggle burner on/off switch
• Inline fuel filter for burner protection

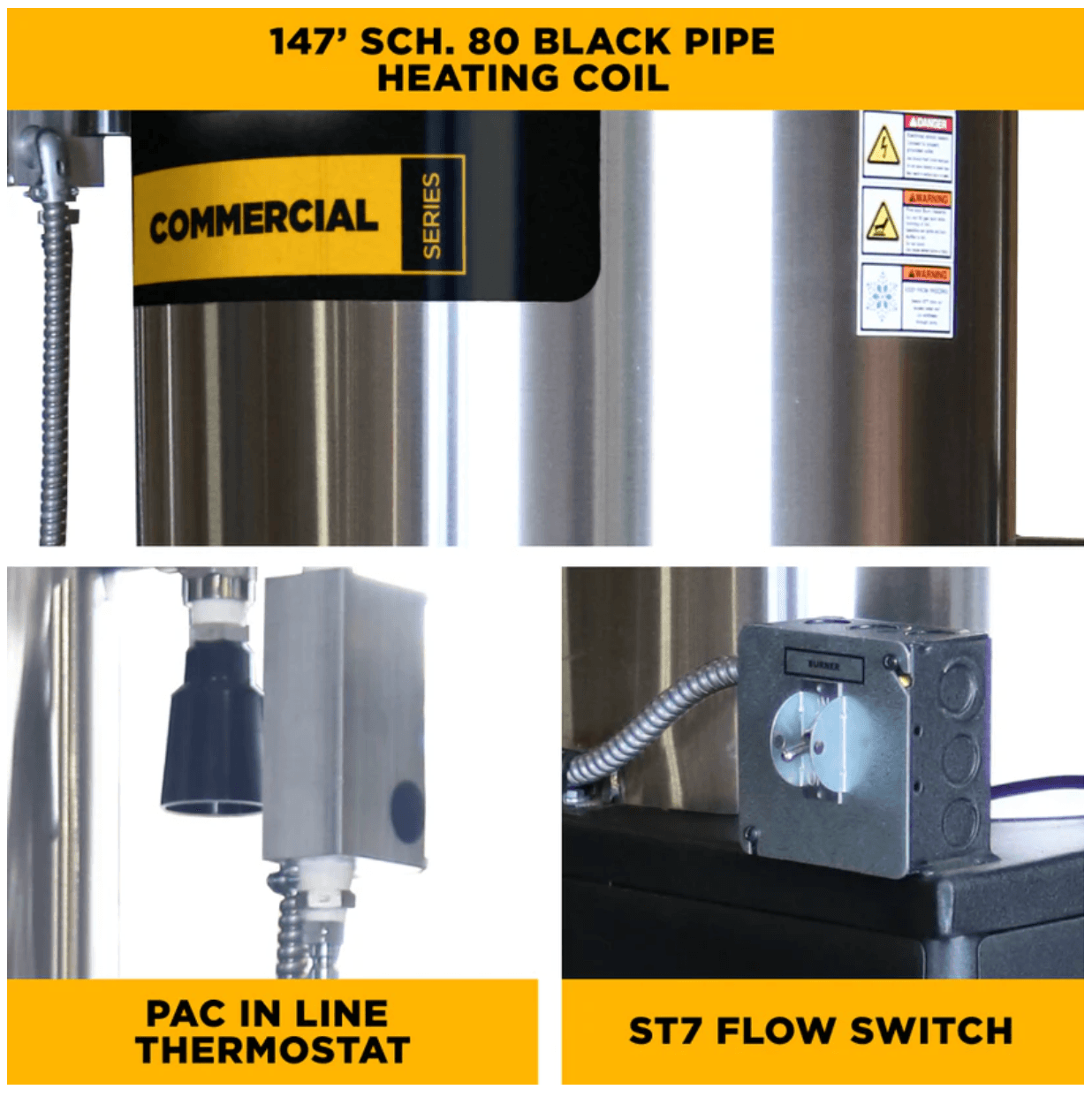

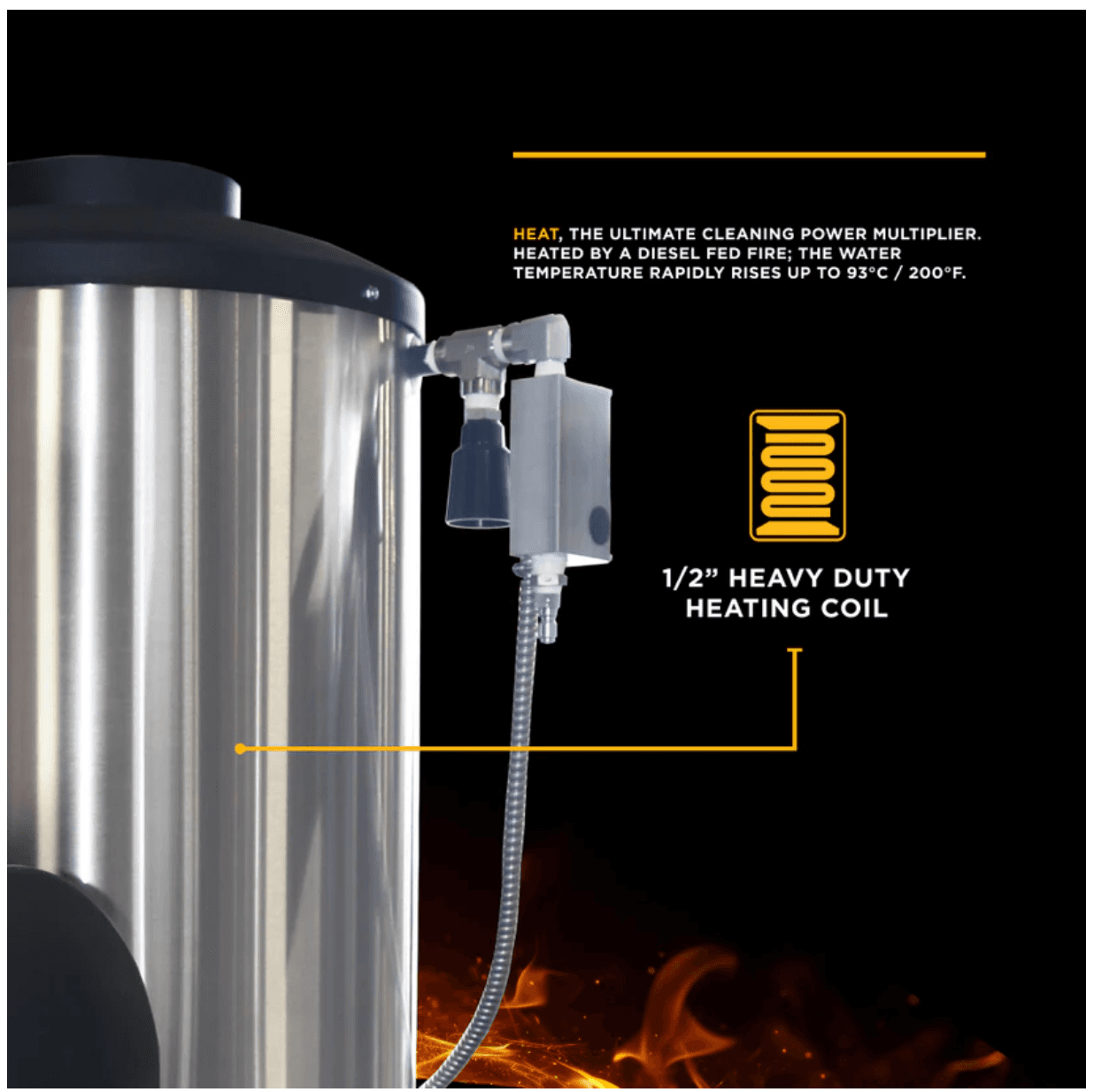

This system delivers fast heat-up times and reliable hot water for demanding cleaning tasks with it's Heavy-Duty Heating Coil Assembly. The hot box is equipped with a 147’ x 1/2” Schedule 80 cold-rolled steel heating coil, engineered for durability and efficient heat transfer.

• Schedule 80 construction resists pressure and thermal stress
• Designed for continuous hot water operation
• Built for long service life in industrial environments

Integrated Safety and Flow Control to ensure safe and dependable operation, the 96115V includes multiple built-in protection systems:
• Flow switch monitors water movement and burner operation
• High limit switch prevents overheating
• Rupture disk for pressure protection
• Toggle burner switch for manual control

These features protect both the hot box and connected pressure washer during operation.

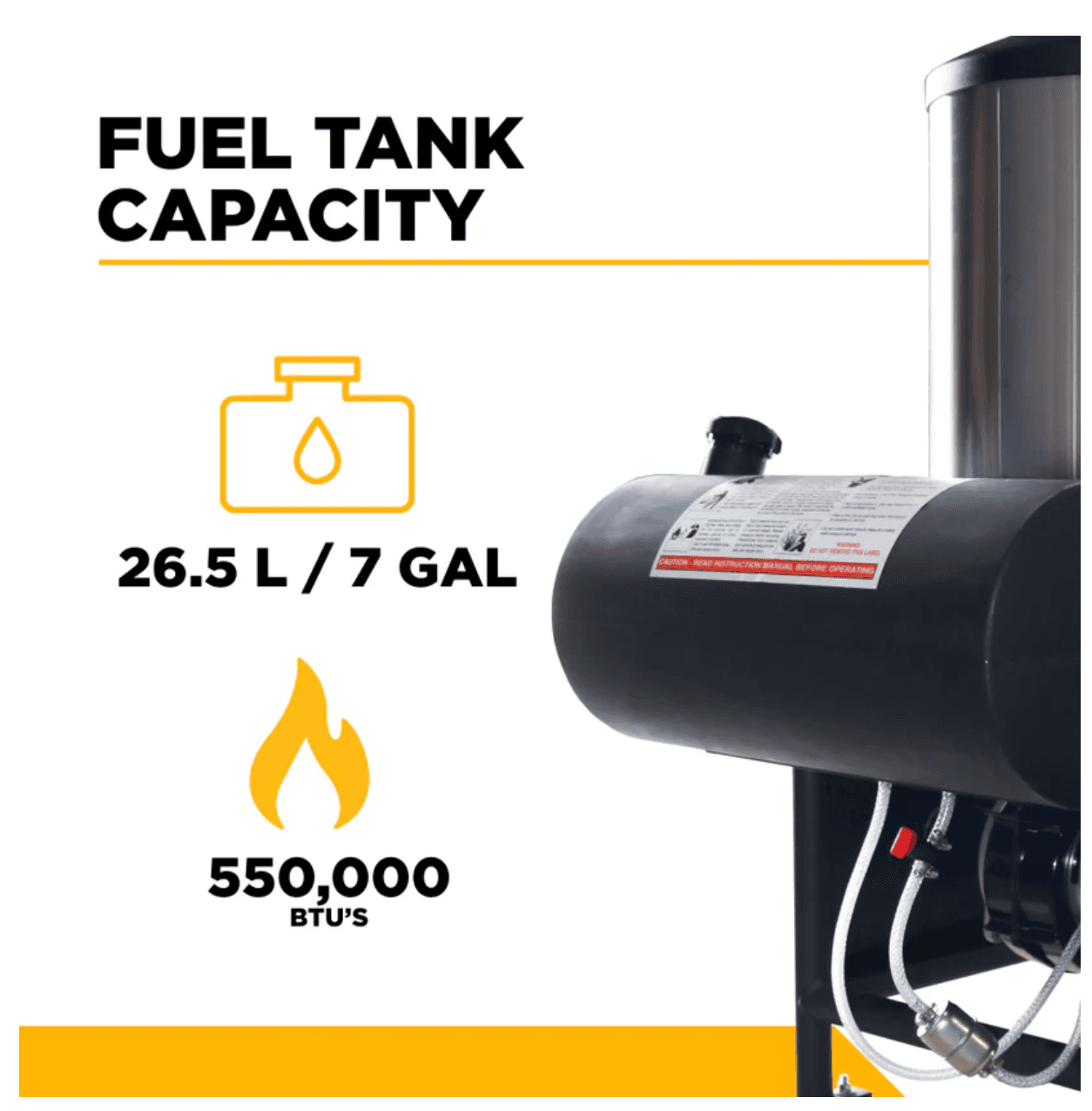

Large Diesel Fuel Capacity with a 7-gallon (26.5 L) black poly diesel fuel tank provides extended run time, allowing operators to work longer without frequent refueling.

Industrial Frame Construction with a powder-coated steel frame delivers excellent durability and stability while protecting internal components. The vertical design keeps the footprint compact while maintaining easy access for servicing.

PRODUCT SPECIFICATIONS

• Model: 96115V
• Compatible Flow Rate: 4.0–5.0 GPM

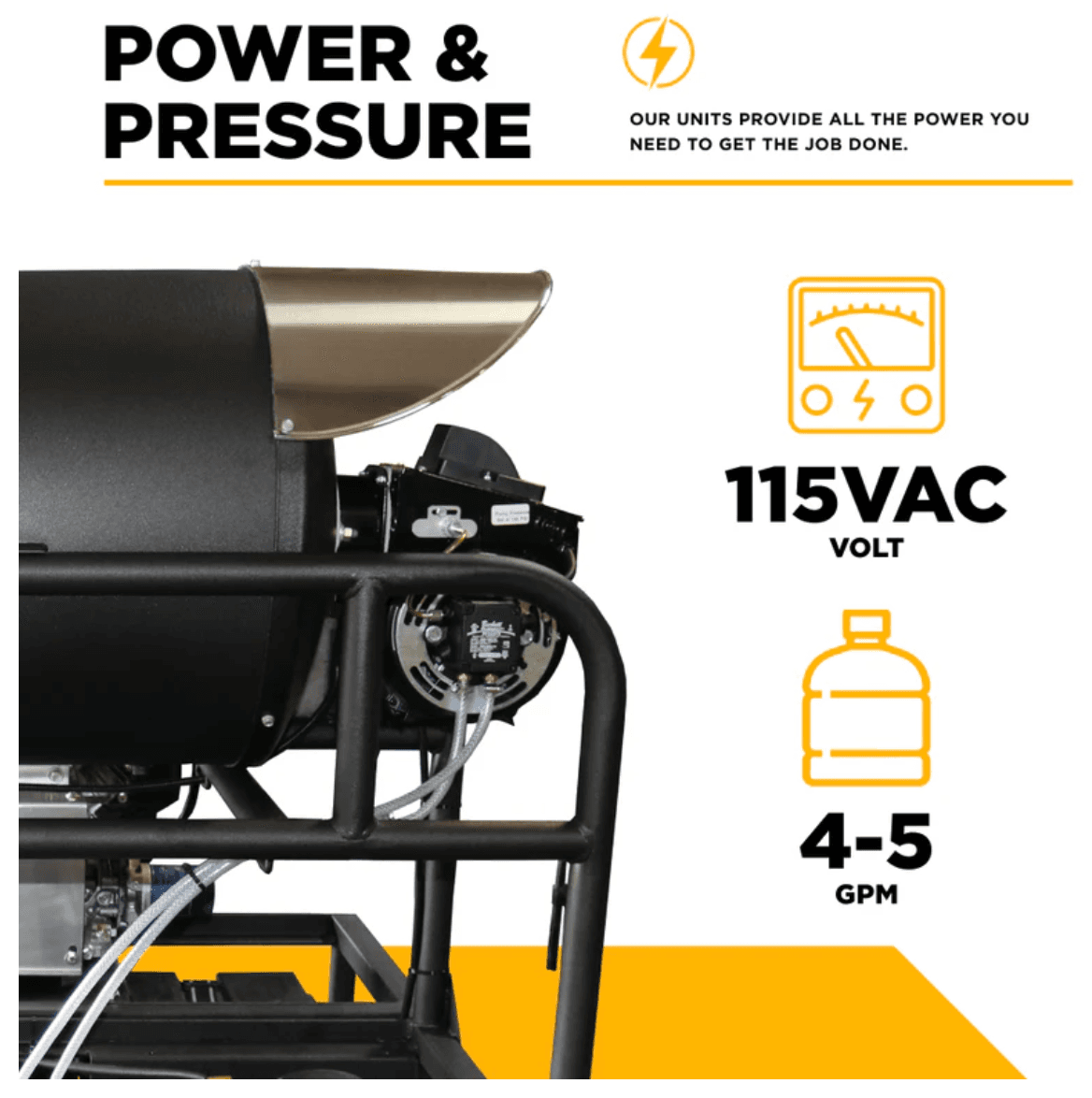

• Power Supply: 115VAC
• Amperage: 15A
• Cord / Plug: 35' GFCI
• Burner: SM diesel burner with electronic ignitor
• BTU Output: 550,000
• Maximum Water Temperature: 93°C / 200°F
• Heating Coil: 147’ x 1/2” Schedule 80 cold-rolled steel
• Fuel Tank Capacity: 26.5 L / 7 gal black poly
• Adjustable Thermostat: No
• Flow Switch: Yes
• High Limit Switch: Yes
• Rupture Disk: Yes
• Inline Fuel Filter: Yes
• Burner Switch: Toggle

WARRANTY COVERAGE

• Burner: 3 Years
• Heating Coil: Lifetime

SHIPPING INFORMATION

• Shipping Weight: 365 lbs

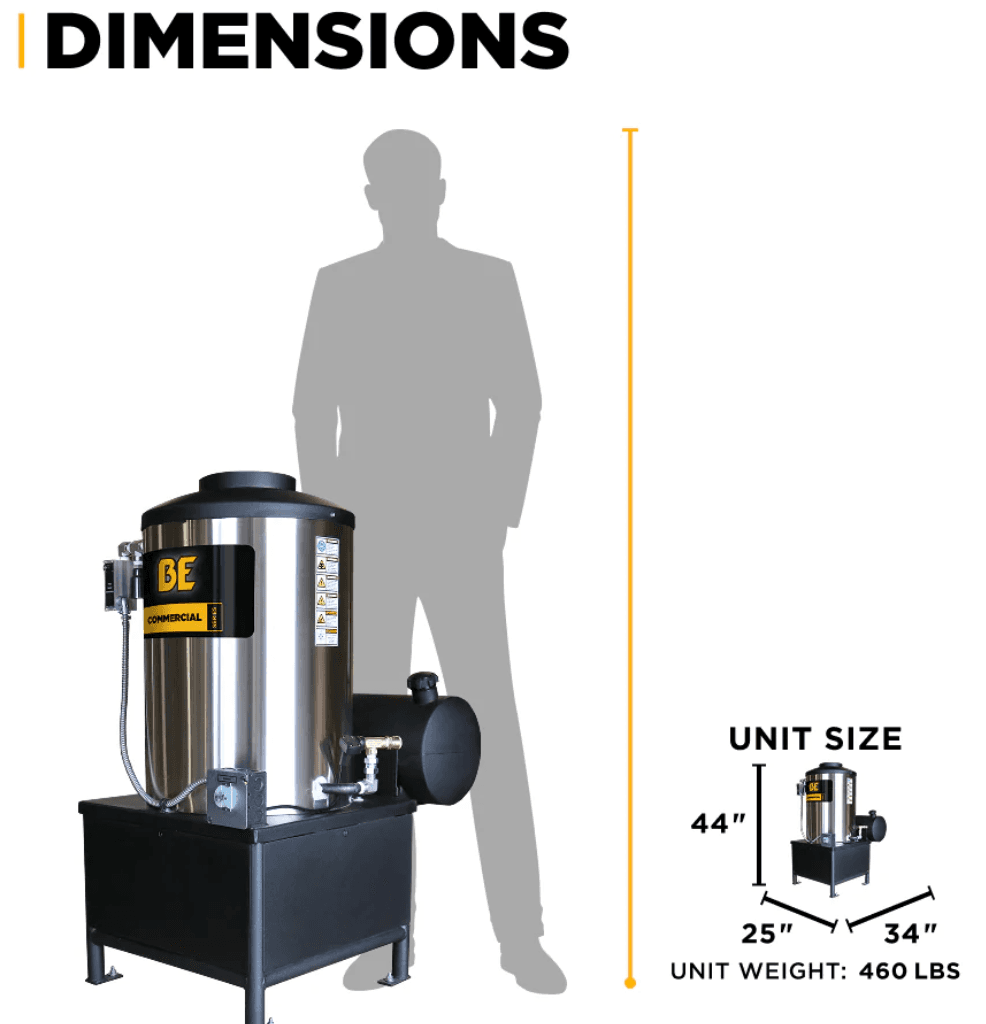

• Shipping Dimensions (L × W × H): 48” × 40” × 62”

FACTORY TESTED FOR PERFORMANCE

All BE Power Equipment hot boxes are tested prior to shipping. Units may show signs of testing or residual fuel odor, confirming quality control and operational readiness.

ADDHEAT ONLY WHEN YOU NEED IT

For professionals who occasionally need serious hot water cleaning power without a full system replacement, the 96115V Hot Box delivers unmatched flexibility and performance.

96115V — industrial heat, on demand.
